Construction,Dish washer linings,cookers,flue linings,Automotive trim
Mill Edge Slit Edge
Tensile Strength min.:
300 Ton/Tons per Week
Packaging & Delivery
PACKING :Seaworthy fumigation-freewooden pallet or according to client's requirement .
PALLET WEIGHT:2.5 MT - Max. (stainless steel sheet).
MARKING/LABELLING ON PACKAGING:Yes.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Hight) ------ Max Gross Weight: 27MT/container.
1. Grade: 430
2. Size: 0.3-6.0mm
3. Standard: DIN GB ISO JIS BA ANSI
4. Certification: ISO9001, SGS, BV,ABS.
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
Stainless steel grade 1.4016 is currently the most used ferritic stainless steel grade in the world. This medium chromium
steel corresponds to the industry standard of AISI 430. A chromium content of 16 % gives better corrosion resistance and
the grade is used in wide range of applications, mostly indoors.
Grade 4016 is a general 16% Cr ferritic stainless steel, feasible for many applications including catering, appliances and indoor applications. Typical applications include washing machine drums, dishwashers, sinks, countertops, and range hoods. Grade 4016 is typically used with a polished or brushed finish or with a bright finishes .
The following are the applications for stainless steel grade 430:
Dish washer linings,cookers,flue linings
Refrigerator cabinet panels
Element supports and fasteners
Stove trim rings and chimney liners
Automotive trim and lashing wires
Low cost sinks
Stainless steel grade 430 has a low work hardening rate which enables easy bending and forming.The low ductility rate,however,makes it difficult to perform very rigorous operations.It is possible for grade 430 wire to handle rigorous cold heading.Sub-critical intermediate annealing may be required for extreme cold working.
The machinability of stainless steel grade 430 is a lot easier than standard austenitic steels such as grade 304 -but there is a chance for galling.Lightly drawn bars are easier to machine than bars in the annealed condition.
To perform any welding,stainless steel grade 430 has to be pre-heated at150-200℃(302-392℉).In case of embrittlement in the welded metal,the particular area can be post-weld annealed at 790-815℃(1454-1499℉);however grain refinement will not happen. It is recommended that grade 430,308l,309 or 310 filler rod should be used based on the application.
Stainless steel grade 430 is capable of resisting oxidation up to 870℃（1598℉）in intermittent usage,and up to 815℃(1499℉) in continuous usage .At room temperature,it has the tendency to become brittle,especially when it has been heated for a long time in the 400-600℃(752-1112℉) range.This issue can be overcome with annealing.

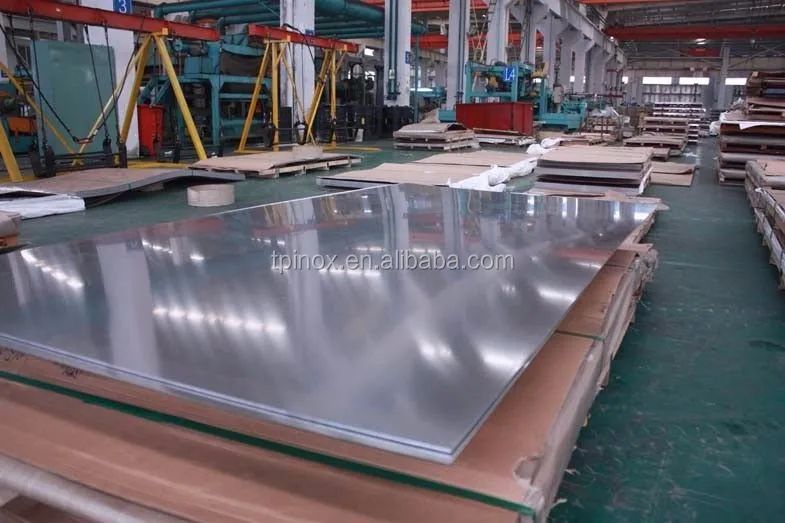

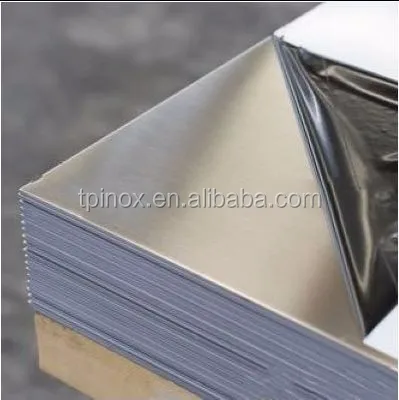

430 stainless steel sheet cold rolled BA finish with PVC film
DIN GB ISO JIS BA ANSI
Yield Strength0.2% proof
Elongation(% in 50mm)
Rockwell B(HR B) max:85
Brinell (HB) max:183

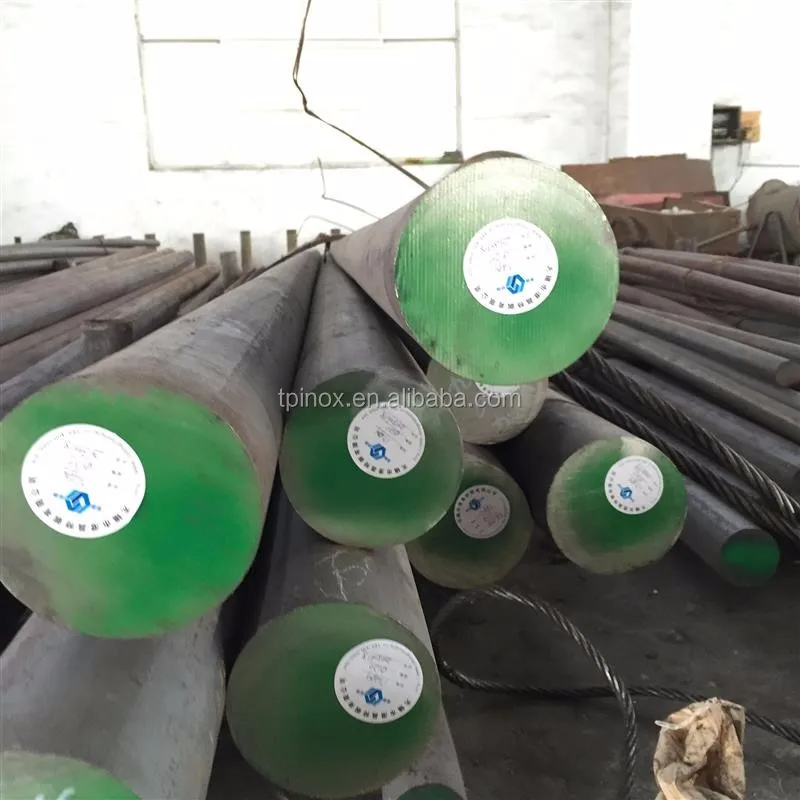

stainless steel bars
Packing & Delivery
Packing Details : Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet, then put in container) or customized. Delivery Details : 3-5days normally.
1. Materials for packaging (a)angle bars: (b)Function:Angle bar have very good protection to be used for fixed the four side edge of the steel plate and preventing the damages of loading and unloading process.

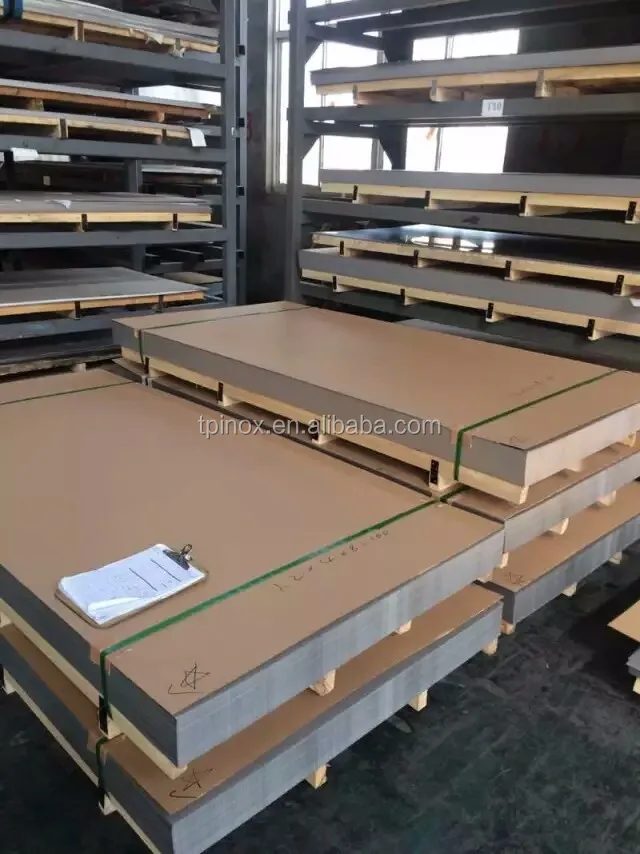

2. Materials for packaging (a):plywood (b)Function:at the top of each wooden pallet will be put a whole piece of plywood to protect the stainless steel sheet surface keeping smooth,no scratch,and in good condition.
3. Complete package(2.5T max.) Products are packed and labeled according to the regulations and customer's request. Grate car is taken to avoid any damage which might otherwise be caused during transportation.

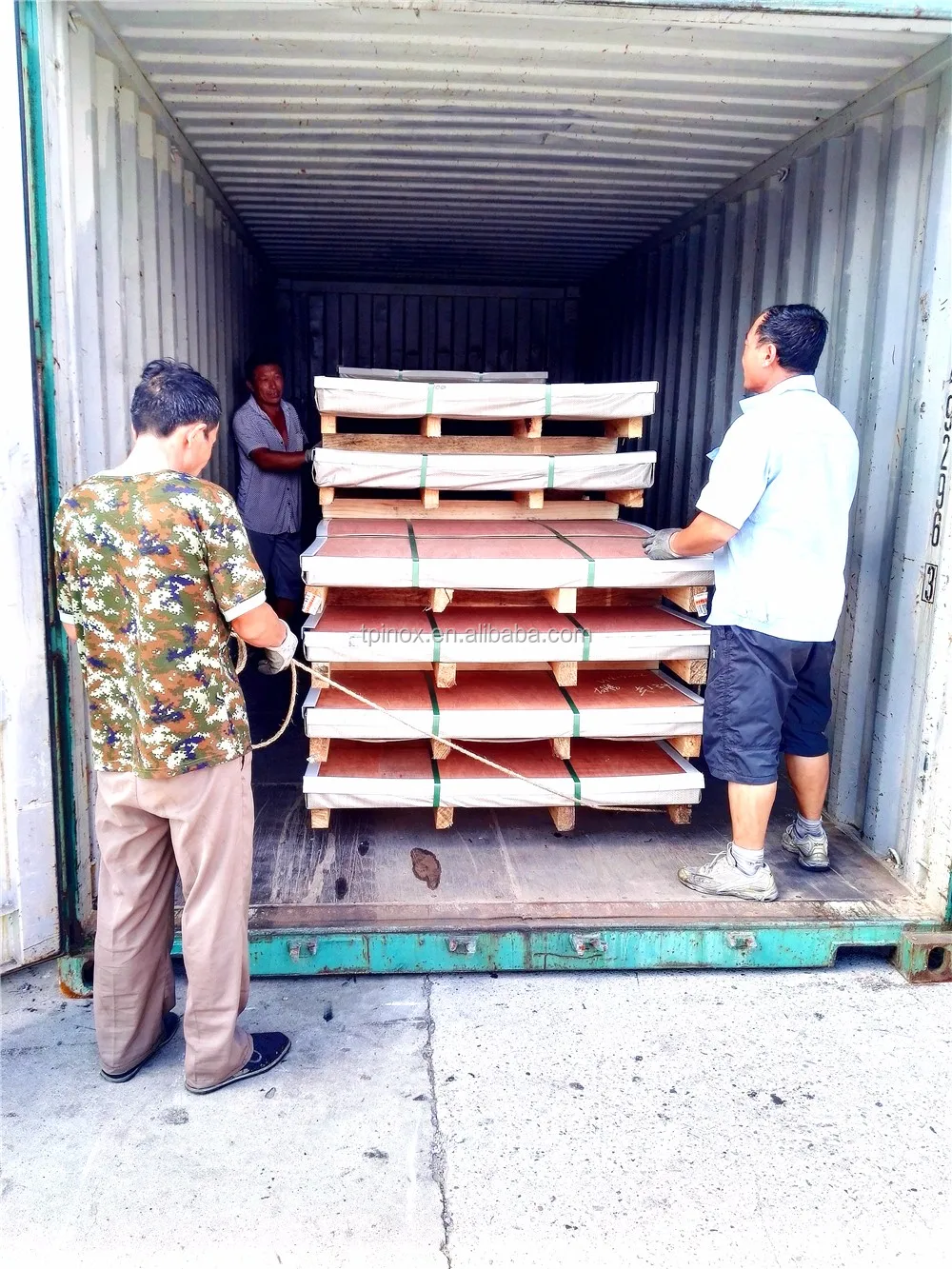

4. Loading into container

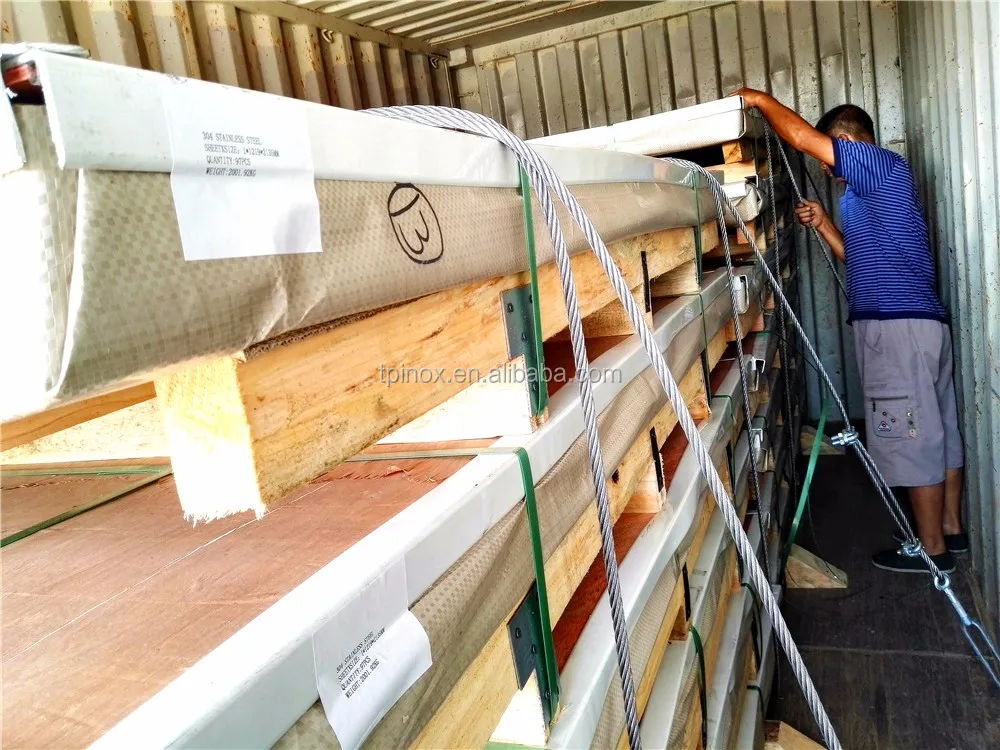

5. Steel wire rope reinforcement
6. Finish Loading
Best stainless steel sheet supplier in China .TPINOX provides considerable quantities of hot and cold rolled stainless steel coils and sheets of grade 304、304L、316L 、321、310S 、2205 duplex stainless steel 、special stainless steel contain high nickel and 430、201 for a long time.and price and quality always good !.
Choose TPINOX,you will get Effciency:Quick feedback and fast delivery arrangement Guarantee:High-quality service and products. Benefit:Assured competitive price makes purchasing cost lower.
As TPINOX is based on government owned mills (TISCO,JISCO,BAOSTEEL,POSCO),also keeps strategic cooperation with Thyssen Krupp(Germany),ArcelorMittal(Belgium),Inoxtech(Italy), Posco(Korea),Ak Steel(America),etc. so you can get Professional after-sales service, pre-sale consulting.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
