SA790 alloy duplex stainless steel Seamless pipe

FOB Reference Price:Get Latest Price
$3.00 - $7.00 / Kilograms | 500 Kilogram/Kilograms SA790 alloy duplex stainless steel Seamless pipe (Min. Order)
Lead Time:
Quantity(Kilograms) 1 - 26000 >26000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Standard:
ASTM, AISI, DIN, EN, GB, JIS, www.tpinox.com
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TPINOX
Model Number:
2205
Type:
Seamless
Steel Grade:
duplex stainless steel
Application:
fuel tankers,Construction.
Certification:
SGS
Welding Line Type:
Seamless
Thickness:
0.5mm-45mm
Outer Diameter:
6.0mm-830mm
Material Grade:
stainless steel UNS S31803
Shape:
Round, Square, Rectangle, Hydraulic, Honed Tubes
Schedules:
5, 10, 10S, 20, 30, 40, 40S, 80, 80S
Condition:
pickled, bright annealed, mill finish and polished
Technique:
Seamless steel
Specifications:
SA790
Outside diameter:
6.0mm-830mm
Wall thickness:
0.5mm-45mm
Length:
as customized
wechat/whatsapp:
+86 15261581385
Supply Ability
Supply Ability:
200 Ton/Tons per Week free sample
Packaging & Delivery
Packaging Details
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle. Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Hight) ------ Max Gross Weight: 27MT/container.
Port
Shanghai
Lead Time :
Quantity(Kilograms) 1 - 26000 >26000
Est. Time(days) 15 To be negotiated
Product Details
TP INOX 2205 (s31803) alloy duplex stainless steel Seamless pipe
Duplex 2205 duplex stainless steel alloy is 22% chromium, 2.5% molybdenum, and 4.5% of nickel, nitrogen alloyed stainless steel. 2205 is characterised by:

1.high mechanical strength – roughly twice the proof strength of austenitic stainless steels.

2.physical properties that offer design advantages.

3.good weldability.

4.high resistance to stress corrosion cracking in chloride-bearing environments and in environments containing hydrogen sulphide.

5.high resistance to general corrosion, pitting and crevice corrosion.

6.high resistance to erosion corrosion and corrosion fatigue.

Product Specification

Product
Size Range

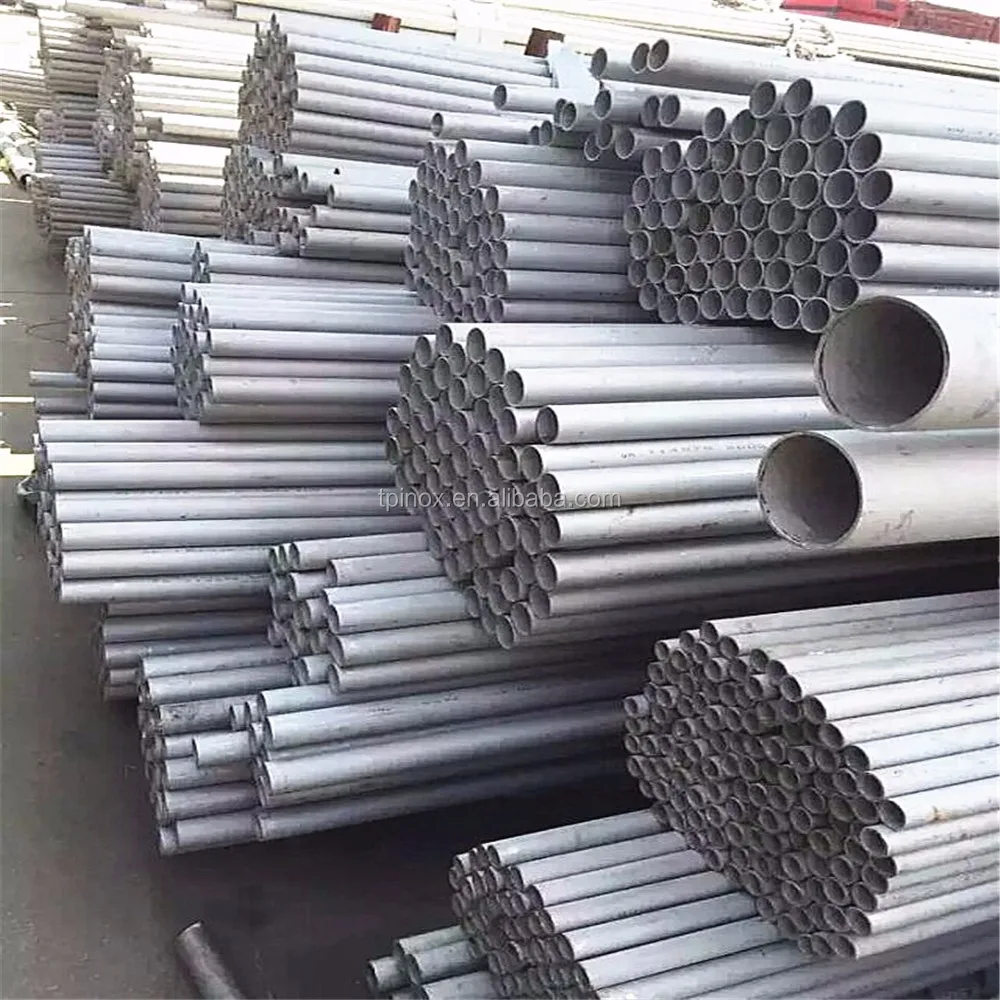

Stainless steel seamless tube & pipe
OD: φ6-φ830mm

WT:0.5-45mm
U-Tube
OD: φ12-φ38mm

WT: 0.5-4mm
Typical Chemical Composition % (max values, unless noted)
UNS Designations
Type
C
Mn
P
S
Si
Cr
Ni
other
S31803
2205
0.03
2.0%
0.03%
0.03%
1.0%
21-23%
4.5-6.5%
Balance

Typical Mechanical Properties

Grade
UNS Designations
Tensile Strength,min.
ksi(MPa)
Yield Strength,min.
ksi(MPa)
2205
S31803
90(620)
65(450)
Product Introduction


Wuxi tp inox  Stainless Products stocks stainless steel Seamless pipe per ASTM A 312 ;ASTM A790 in 304/304L and 316/316L. We also supply other stainless grades, including 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 904L, 330, 254SMO, 410. In duplex grades, we can supply 2205 and 2507,etc. Some nickel grades are also supplied.

We supply a full range of pipe schedules ranging from Sch 5 thru Double Extra Heavy. Most products are available in 20′ random length sections, but Penn Stainless Products can supply stainless steel seamless pipe in most stainless grades in sections exceeding 40′. All stainless steel seamless pipes can be cut to your exact requirements. Some made to order items can be produced in 2-3 weeks.

Main Steel Type and Typical Grade SA790 alloy duplex stainless steel Seamless pipe

Steel Types
Typical Steel Codes(AISI)
Austenitic
TP304, TP304L, TP304H, TP316, TP316H, TP316Ti, TP316L, TP321,

TP321H, TP347H, TP347HFG, 904L, TP310H, TP310S, TP317,

TP317L, TP316LMo≥2.5; etc
Duplex/Super duplex
S31803; S32205; S31500; S32750

Main Production Standards

Standard Type
Standard
EN
EN10216-5; EN10216-2
DIN
DIN 17456; DIN 17458
ASTM
ASTM A312, A213, A269, A511, A789, A790; B163, B423, B407, B668
ASME SA213, SA312, SA789, SA790; SB163, SB423, SB407, SB668
JIS
JIS G3459; G3463
GOST
GOST 9941; GOST 5632
GB
GB/T14975; GB/T14976; GB13296; GB5310; GB9948
Product Details Show
Product Processing
Product Packing
Main Equipment
Item
Unit
Technical data
Peeling lines
3
Φ50-200mm
Piercing lines
6
φ 50-240mm
Cold drawing lines
40
φ6-830mm
Cold rolling lines
21
φ16-325mm
Straightening machine
6
Φ14-426mm
Annealing furnace
6
Natural Gas
Pickling pool
22
/
Main Products

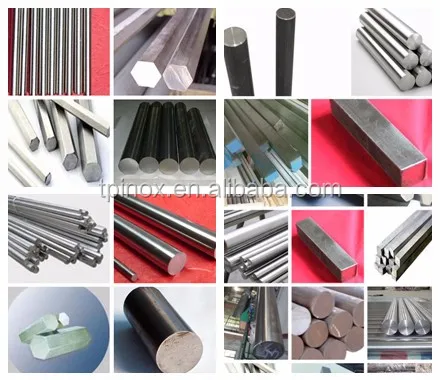

stainless steel bars

(round,square,hexagonal,flat shape)
contact us at www.tpinox.com to get latest price


pipe fittings

contact us at www.tpinox.com to get latest price


Special steel black bar

contact us at www.tpinox.com to get latest price

stainless steel coils

contact us at www.tpinox.com to get latest price

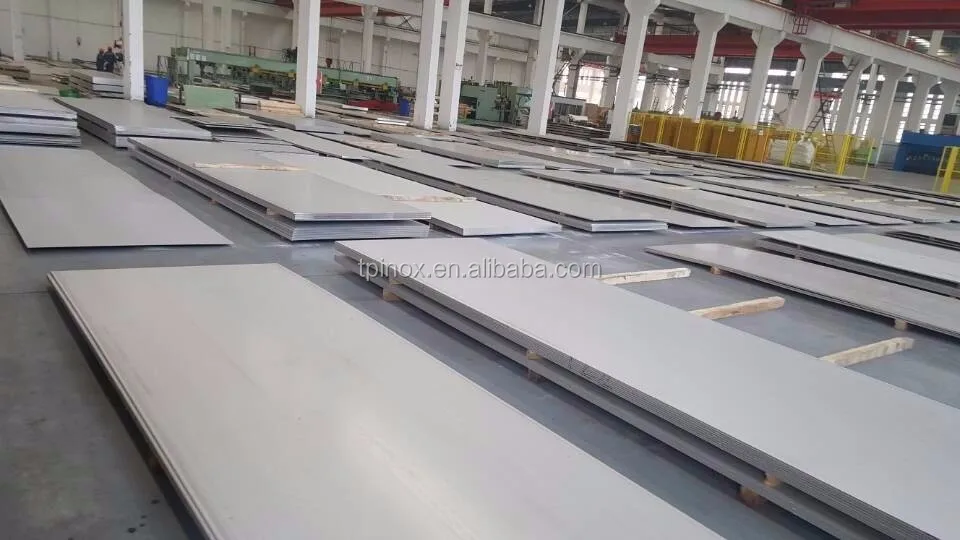

stainless steel plate
