Stainless Steel 15-5ph Round Bar/rod with the best price

FOB Reference Price:Get Latest Price
$2.00 - $3.00 / Kilograms | 500 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Grade:
Precipitation hardening stainless steel
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TPINOX
Model Number:
XM-12, 15-5 ph
Type:
Round
Application:
Construction, Industry, Chemical process components
Shape:
Round
Certification:
ISO
Special Use:
Valve Steels
Product name:
stainless steel round bar
Material:
Precipitation hardening stainless steel
Surface:
Peeled, Cold Drawn Turned and Polished, and Centreless Ground
Dimensions:
3.0-800mm, 3.0-800mm,UNS S15500
Features:
Excellent oxidation resistance to about 1100°F
MOQ:
500 Kilograms
Length:
Customers' Requirements
Supply Ability
Supply Ability:
200 Ton/Tons per Week
Packaging & Delivery
Packaging Details
Standard seaworthy packing(plastic& wooden) or according to the customer' s requests.
EACH BUNDLE WEIGHT:1.0 MT - Max.
MARKING/LABELLING ON PACKAGING:Yes.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Hight) ------ Max Gross Weight: 27MT/container.
Port
Shanghai&Ningbo
Lead Time :
7-15days
Product Details

15-5 PH STAINLESS STEEL BAR

The 15-5 PH alloy was designed to have greater toughness than 17-4 PH. The 15-5 PH alloy is martensitic in structure in the annealed condition and is further strengthened by a relatively low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 PH is also referred to as XM-12 in some specifications.

Brand Name
TPINOX
Material
Precipitation hardening stainless steel
Dimensions
3.0-800mm
Standard
ASTM, AISI, DIN, EN, GB, JIS,
Type
Round
Special Use
Valve Steels
Used
building industry machinery
Product Description

Introduction:

15-5 PH stainless steel was designed to have greater toughness than 17-4 PH. The 15-5 alloy is martens tic in structure in the annealed condition and is further strengthened by a relatively low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 is also referred to as XM-12 in some specifications. wuxi tp inox co.,ltd also offer 15-5ph UNS S15500 Grade XM-12 Round Bars. Round Bars are steel or metal bars that are produced by one or more cold finishing processes. The processes outlined below are known as Cold Finish processes or the end products are known as cold finished because there is no or very little heat applied in the entire operation of converting them from hot rolled bars (also known as black bars) to 15-5ph UNS S15500 Grade XM-12 Round Bars. 15-5ph UNS S15500 Grade XM-12 Round Bars is decaled pulled through Tungsten Carbide or High Speed Steel Die, straightened & cut-to-length; Improves dimensional tolerance and shape, straightness, surface finish, strength and machine ability. Remove bar surface of 15-5ph UNS S15500 Grade XM-12 Round Bars with revolving cutting tool, rotate bar through rolls to straighten and polish, then cut-to-length.

Specifications:
AMS 5659, AMS 5862, AMS 5862J Type 2                                                      ASTM-A564 (XM-12), BAC 5439 Rev H Class

ASME SA 564, ASME SA 693, ASME SA 705                                                  A Type1, BMS 7-240 (Boeing)

ASTM A 564, ASTM A 693, ASTM A 698, ASTM A 705                                 STD 2154

W. Nr./EN 1.4545                                                                                                 UNS S15500

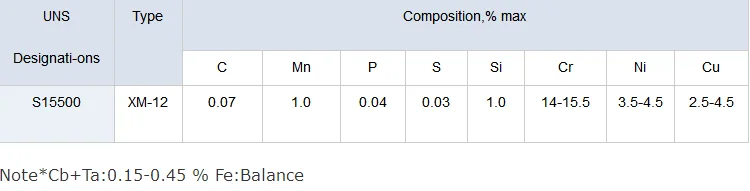

Chemical
Product Details

Physical Properties:

Density: 0.282 lb/inch3

Melting Range: 2560 - 2625°F

Poisson's Ratio: 0.272

Electrical Resistivity: 463 Ohm-circ mil/ft

Features:


Precipitation Hardening

High Strength

Moderate corrosion resistance to 600°F

Applications:

Aerospace applications

Chemical and petrochemical applications

Pulp and paper

Food processing

Product Processing

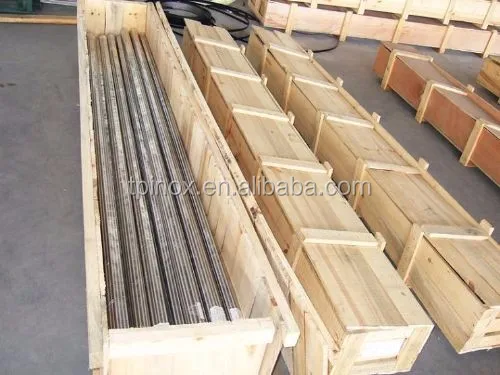

Packing & Delivery
Our Company

TP INOX Co.,Ltd.

TP INOX Co., Ltd, the head office of BAOSTEEL group in China. TP INOX CO.LTD had passed through authentication of ISO9001:2008 quality systems and ISO 14001: 2004 environmental management systems. Equips with the most complete ranges of production lines, metal processing capabilities including Leveling and Cut-to-length Lines, Slitting, Polishing, Sheared Cut, Press Brake Bending, Plasma arc Cutting, Press For Floor Plate, Laser Cutting, Auto-Punching. Both proficient skills and professional equipment provide high quality and great precision of metal processing for any gauges of stainless steel; completely achieve the global service of semi-finished materials. The specialty of TP INOX Group involves in marketing distributions, completed and numerous dealers around the world which could perfectly meet global logistics by single window services.
